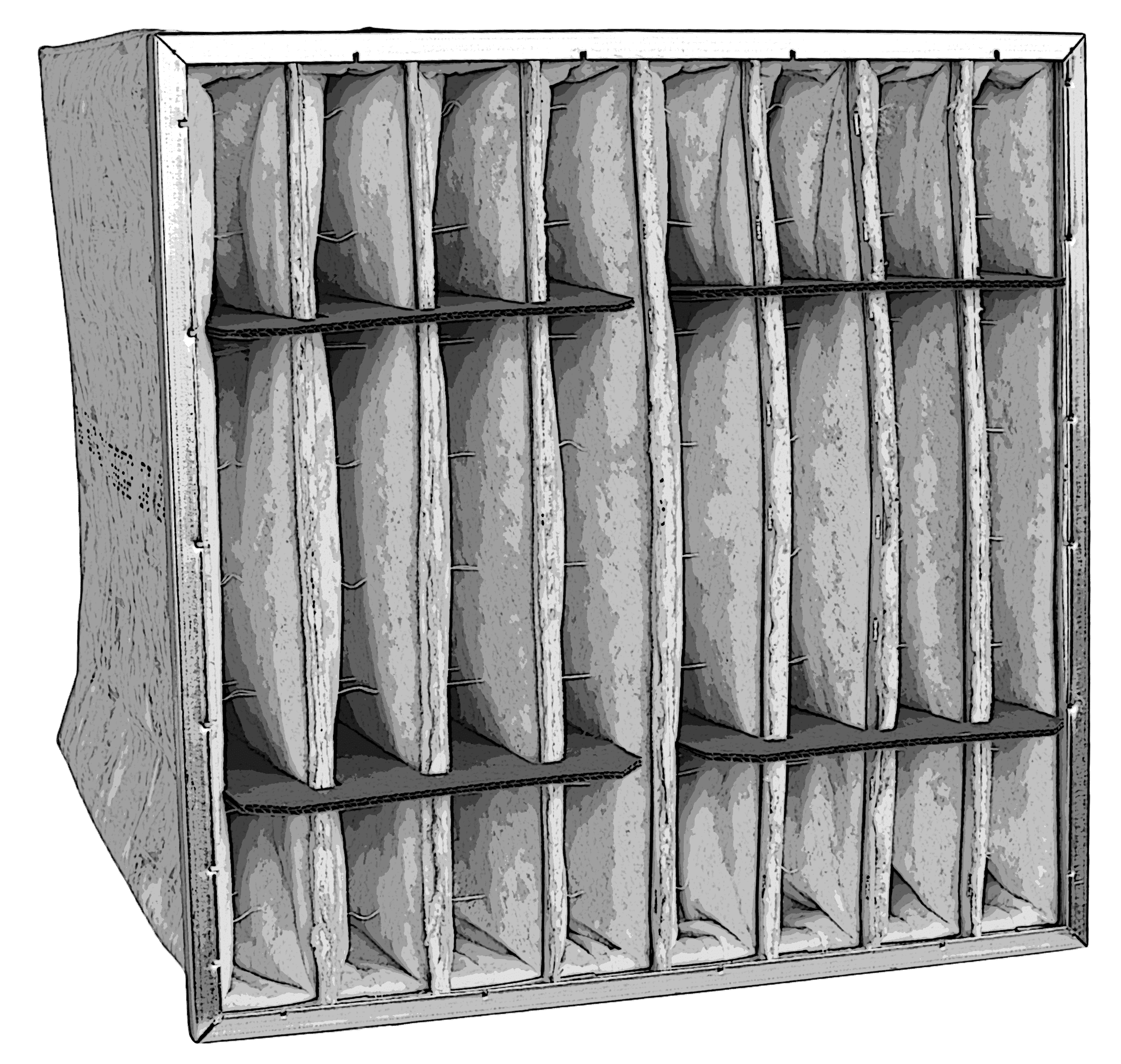

POCKET FILTER
HYBRID
f7 H85
Technical Specifications
Product
Pocket Filter Hybrid F7 H85
Part Number
H85-668
Frame Material
Metal
Filter Media
High-performance synthetics & glass fiber
Filter Surface Area
6,0 m²
Dimensions
592 x 592 x 600 mm
Number Of Pockets
8
Nominal Air Flow
3400 m³/h
Initial Pressure Drop
75 Pa
Rec. Final Pressure Drop
500 Pa
Maximum Operating Temperature
70 °C
Maximum Humidity Resistance
100 %
Filter Class acc. to EN 16890 / EN 779
ISO ePM₁ 70 % / F7
Energy Class acc. to EUROVENT 4/21
B
Energy Consumption
1004 kWh/Year
Fire Class Filter Media
F1 DIN 53438-3 – Self-extinguishing
Material Properties
LABS free
