POCKET FILTER
HYBRID
f9 H95
Technical Specifications
Product

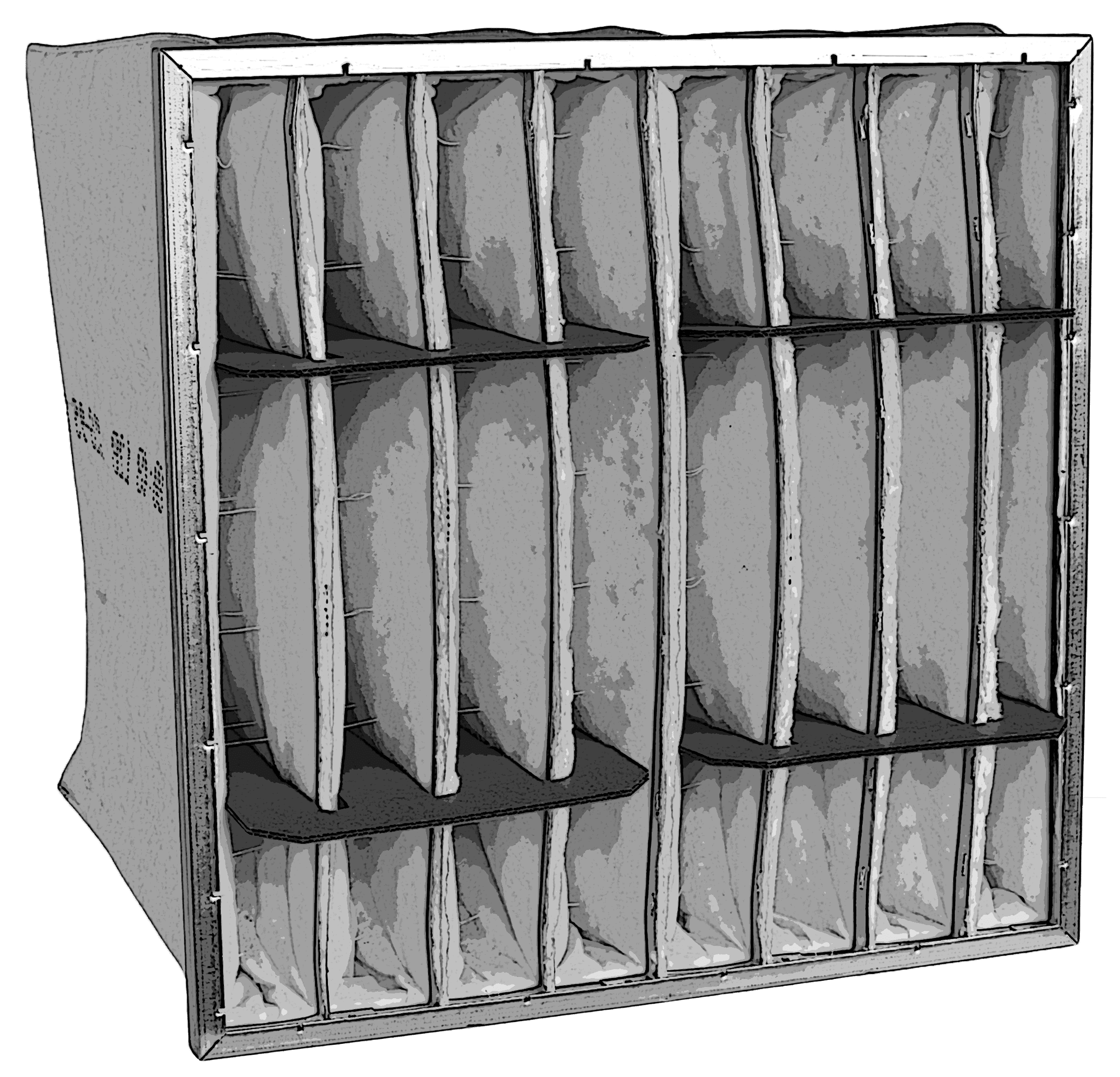

Pocket Filter Hybrid F9 H95
Part Number
H95-668
Frame Material
Metal
Filter Media
High-performance synthetics & glass fiber
Filter Surface Area
6,0 m²
Dimensions
592 x 592 x 600 mm
Number Of Pockets
8
Nominal Air Flow
3400 m³/h
Initial Pressure Drop
180 Pa
Rec. Final Pressure Drop
500 Pa
Maximum Operating Temperature
70 °C
Maximum Humidity Resistance
100 %
Filter Class acc. to EN 16890 / EN 779
ISO ePM₁ 85% / F9
Energy Class acc. to EUROVENT 4/21
D
Energy Consumption
2282 kWh/Year
Fire Class Filter Media
F1 DIN 53438-3 – Self-extinguishing
Material Properties
LABS free
